    EX 80: powerful & compact LED panel

    • EX80 is the winner of NRK(Norwegian national broadcaster)' RFQ in 2019, due to its compact size, high light output, exact color, high-grade quality and DMX512 control.

    Highlights

    • Power 80W
    • Panel size 359 x 234 x 77 mm only
    • 2.57kg (without barndoor), Aluminum frame
    • Bi-Color; TLCI >95, CRI Ra >95
    • 5600K: 3062 lux @ 1m; 387 lux @ 3m
    • DMX512 conrol(Remote control optional)
    Photometric data
    TLCI test
    CIE 1931 test

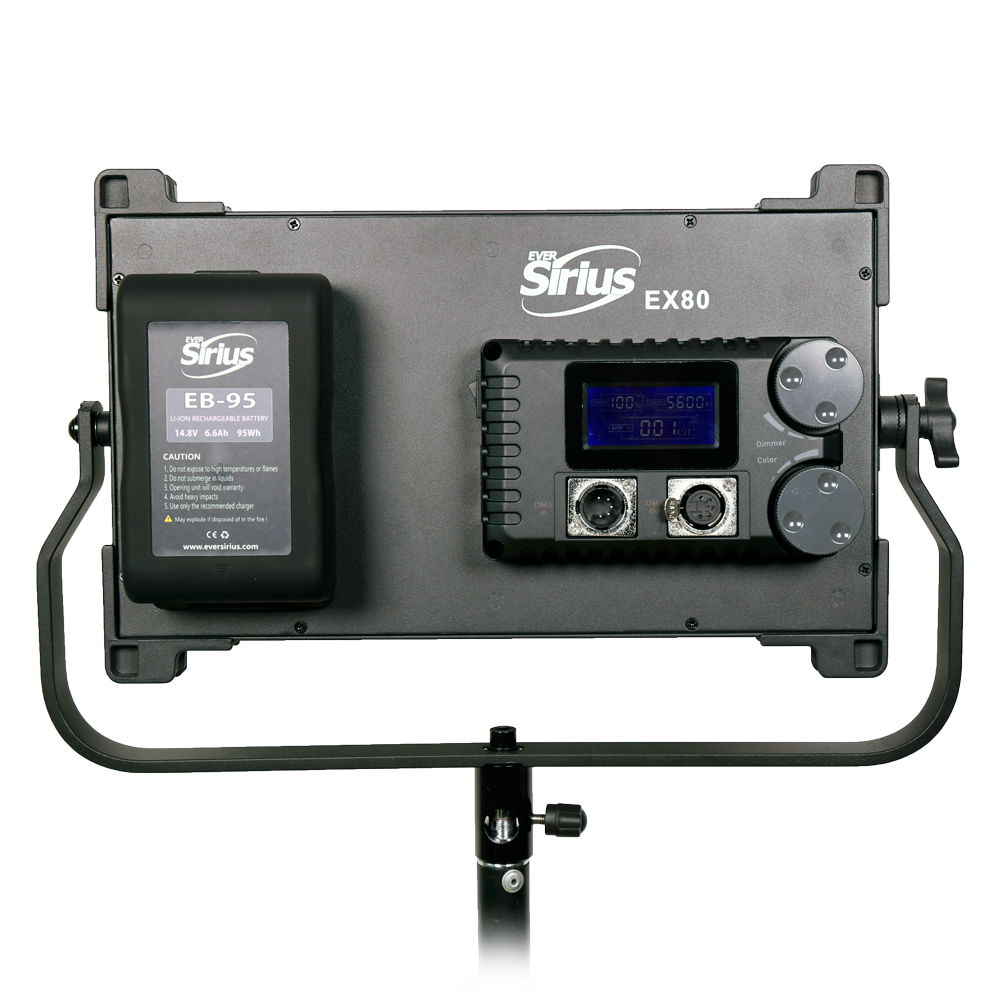

    14.8V battery powers the lighting for outdoor application.

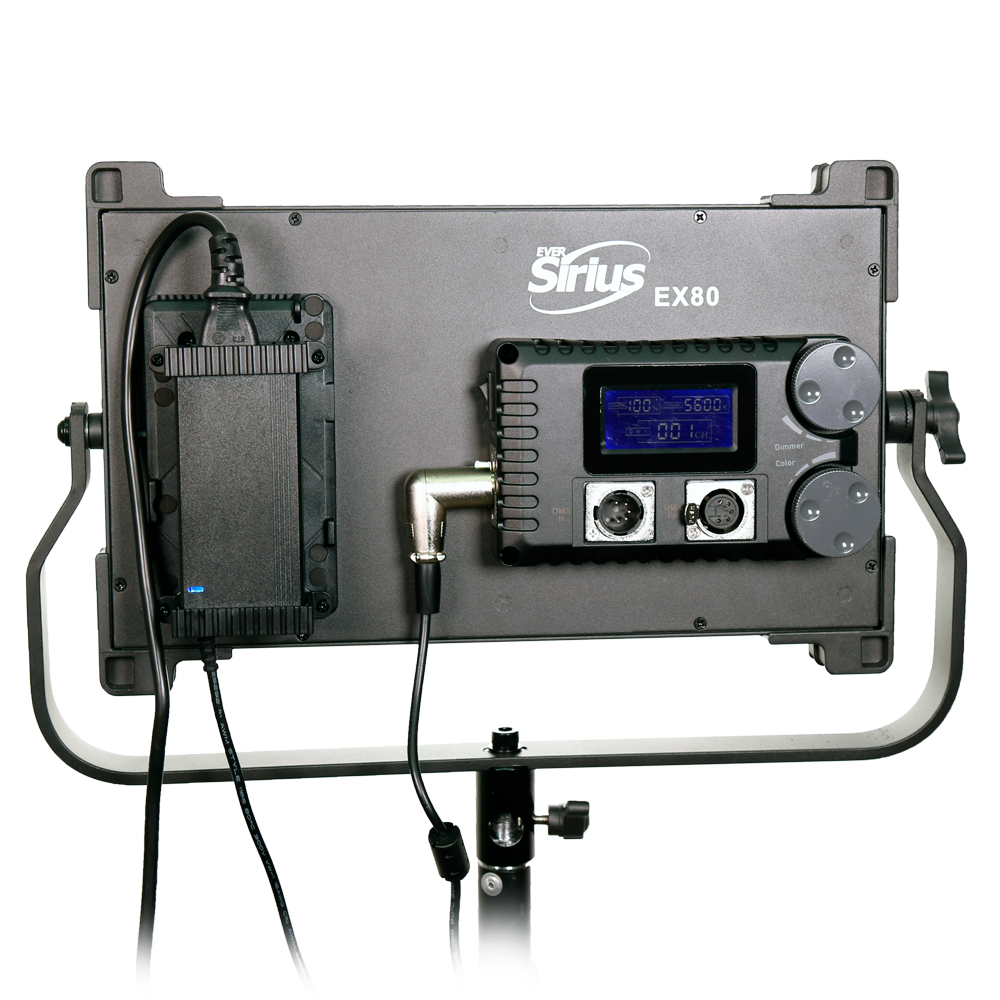

    AC power supply can be fixed on V-lock plate.
    Two F970 batteries power the lighting via converting plate.

    Specifications

    • High CRI 95-98, TLCI >95
    • 10%-100% stepless dimming, Bi-color 3200K-5600K;
    • LCD displays brightness, color temperature and DMX address in real time
    • Beam angle 60°
    • Brightness: 3062lux@1m, 694lux@2m
    • Aluminum alloy frame, good heat dissipation
    • Power option: AC adaptor, 14.8V battery, 2pcs of compatible battery DS-F960 via converting plate.
    • Battery plate: V-mount battery plate (Anton Bauer Gold mount plate optional)
    • Dimension: 419 x 438 x 77 mm including yoke; panel size: 359 x 234 x 77 mm
    • Weight: 2.57kg (without barndoor), 3.14kg (with barndoor)
    • Certification: CE EMC and LVD certified, RoHs reports

    what are included and package

    • barndoors and yoke
    • AC adapter with V-lock
    • Power cable of 4 meters
    • DMX XLR 5pins cable of 5 meters
    • Diffution filter
    • Safety cable
    • Manual
    • Portable bag

    Optional accessories

    • honeycomb
    • light stand
    • DMX controller
